Integrated electric control
Servo motion, CNC logic and core algorithms are coordinated on one LANHAO-developed platform.
Press Brakes · LHP all-electric series
All-Electric Servo Press Brakes
A clean, responsive bending platform combining electric servo drive, LANHAO control and intelligent path planning for precision parts.
LHP-40-1300ELHP-60-2000ESLHP-100-3200ES
Representative configuration shown. Tooling and handling are tailored to the application.
400–1000 kNBending force
1300–3220 mmBending length
2D / 3DInteractive simulation
5 modesProgramming workflows
Platform overview
Built around the workpiece and the production goal.
The LHP range brings CNC, servo control and LANHAO core algorithms into one integrated platform. Five programming modes and 2D/3D simulation help operators move from drawing to an optimized bending sequence with less setup work.
Three frame sizes cover compact precision parts through 3.2-meter panels, with application-specific tooling and back-gauge configuration available for each project.
Visual programming
2D and 3D simulation makes the bending result and sequence easier to validate before production.
Automatic path optimization
The control calculates an efficient bending path to reduce programming and trial-bend time.
Scalable machine range
Choose the force, working length and back-gauge travel around your actual part envelope.

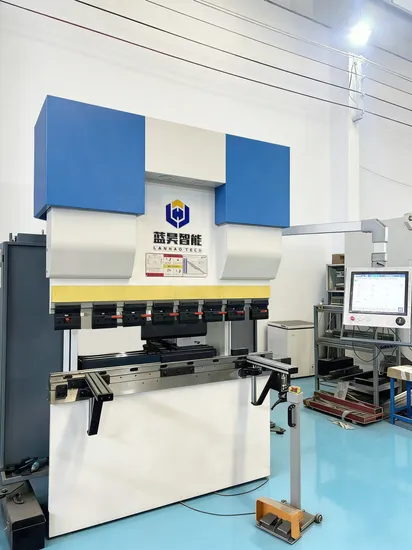

Machine gallery
A closer look at the platform.
Technical overview
Representative specifications.
Final capacity and dimensions depend on material, thickness, tooling, bend geometry and automation scope.
| Specification | LHP-40-1300E | LHP-60-2000ES | LHP-100-3200ES |
|---|---|---|---|
| Bending force | 400 kN | 600 kN | 1000 kN |
| Maximum bending length | 1300 mm | 2050 mm | 3220 mm |
| Column spacing | 900 mm | 1700 mm | 2800 mm |
| Slider stroke | 200 mm | 200 mm | 250 mm |
| Open height | 470 mm | 470 mm | 470 mm |
| X-axis travel | 450 mm | 450 mm | 600 mm |
| Machine weight | 4400 kg | 7500 kg | 11000 kg |
| Main motor power | 2 × 15.7 kW | 2 × 28 kW | 2 × 30 kW |
Typical applications
Where this platform fits.
Precision componentsElectrical enclosuresStainless fabricationIndustrial housings
Engineer your solution
Send us a part. We’ll help define the process.
Share the material, thickness, drawing and production target. LANHAO will recommend the machine, tooling and automation configuration.
Start a project
